portreplikator - Thunderbolt 3 - VGA, HDMI, 2 x DP - GigE - Brugt
- Specifikationer
- Udvidet specifikationer
specifikationer
- OBS: Passer kun til Intel modeller med Thunderbolt 3 (eller nyere)

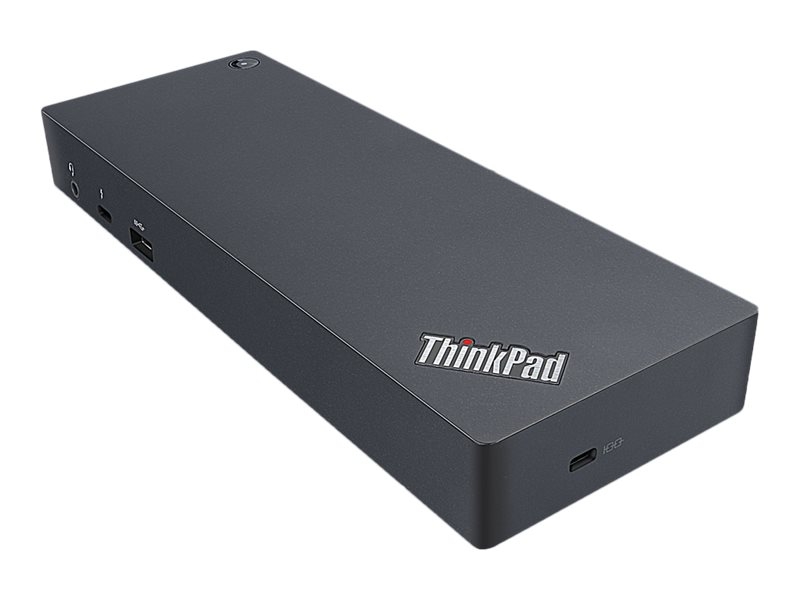

Produktbeskrivelse | Lenovo ThinkPad Thunderbolt 3 Dock - portreplikator - Thunderbolt 3 - VGA, HDMI, 2 x DP - GigE |
Produkttype | Portreplikator |
Docking-interface | Thunderbolt 3 |
Videointerfacer | VGA, HDMI, 2 x DP |
Dimensioner (B x D x H) | 22 cm x 8 cm x 3 cm |
Vægt | 250 g |
Lokalisering | Vietnam, Europa |
Netværk | Gigabit Ethernet |
Effekt | Strømforsyningsadapter 135 Watt |
Producentgaranti | 1 års garanti |
Designet for | ThinkPad P14s Gen 1; P15s Gen 1; P52; T14 Gen 1; T14s Gen 1; T15 Gen 1; T480; T580; X1 Carbon (6th Gen); X1 Carbon (7th Gen); X1 Carbon Gen 10; X1 Carbon Gen 8; X1 Tablet (3rd Gen); X1 Yoga (3rd Gen); X1 Yoga (4th Gen); X1 Yoga Gen 5; X1 Yoga Gen 7; X13 Gen 1; X280; X380 Yoga; ThinkSmart Hub 700 |
Varenummer | 40AC0135EU-brugt |
udvidet specifikation
Generelt
Produkttype | Portreplikator |
Bredde | 22 cm |
Dybde | 8 cm |
Højde | 3 cm |
Vægt | 250 g |
Lokalisering | Vietnam, Europa |
Video
Maks. opløsningdetaljer | 3840 x 2160 - 60 Hz (kun DisplayPort) ¦ 1920 x 1200 - 60 Hz (kun VGA) ¦ 3840 x 2160@30 Hz, 3840 x 2160@30 Hz (DisplayPort1 og DisplayPort2 samtidigt) ¦ 3840 x 2160@30 Hz, 1920 x 1200@60 Hz (DisplayPort og VGA samtidigt) ¦ 1920 x 1200@60 Hz, 3840 x 2160@60 Hz (VGA og ThunderBolt downstream samtidigt) ¦ 3840 x 2160@60 Hz, 3840 x 2160@60 Hz (DisplayPort og ThunderBolt downstream samtidigt) ¦ 3840 x 2160@30 Hz, 3840 x 2160@30 Hz, 3840 x 2160@60 Hz (DisplayPort1 og DisplayPort2 og ThunderBolt downstream samtidigt) ¦ 2560 x 1600@60 Hz, 1920 x 1080@60 Hz, 1920 x 1080@60 Hz (DisplayPort1 og DisplayPort2 og VGA samtidigt) ¦ 3840 x 2160@30 Hz, 1920 x 1080@60 Hz, 1920 x 1080@60 Hz (DisplayPort1 og DisplayPort2 og VGA samtidigt) |
Netværk
Dataforbindelsesprotokol | Gigabit Ethernet |
Ekspansion / Konnektivitet

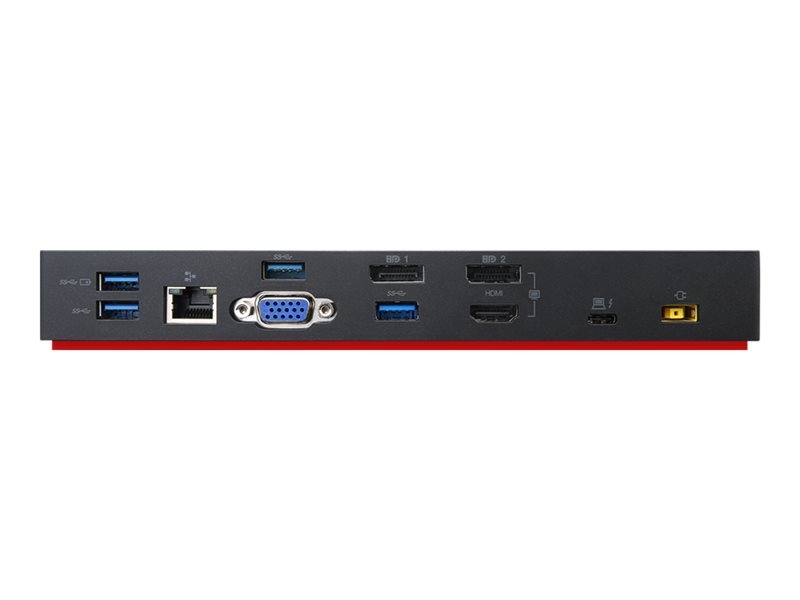

Interface | 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 with Always-On Mobile Device Charging ¦ 2 x Thunderbolt 3 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x skærm/video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x netværk - 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Diverse

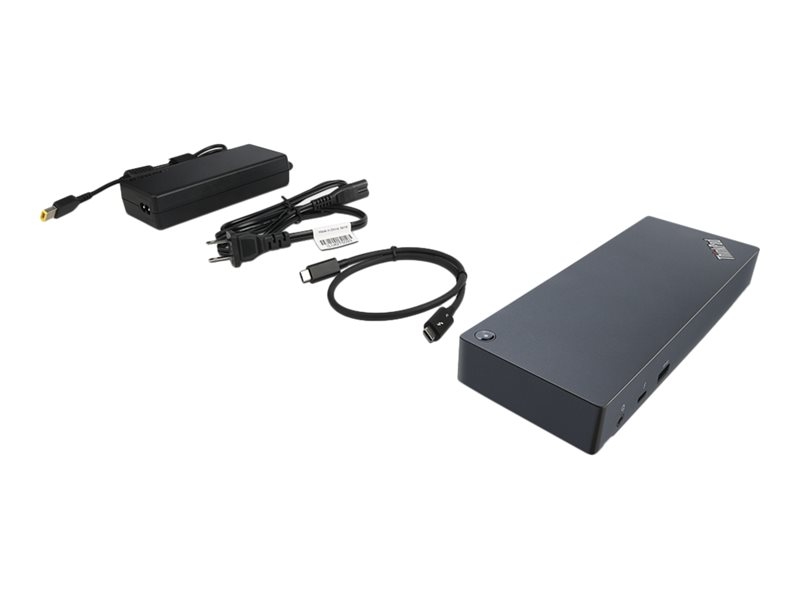

Medfølgende ledninger | 1 x Thunderbolt kabel |
Overensstemmelsesstandarder | UL, VCCI, BSMI, SABS, CB, EMC, FCC, ICES, KC, RCM, CoC, CU, BMSI |
Effekt
Strømenhed | Strømforsyningsadapter |
Strømforsyning | 135 Watt |
Miljømæssige parametre
Min. driftstemperatur | 5 °C |
Maks. driftstemperatur | 40 °C |
Oplysninger om kompatibilitet
Designet for | Lenovo ThinkPad P14s Gen 1 20S4, 20S5 ¦ Lenovo ThinkPad P15s Gen 1 20T5 ¦ Lenovo ThinkPad P51s 20HB, 20HC, 20JY, 20K0 ¦ Lenovo ThinkPad P52s 20LB ¦ Lenovo ThinkPad T14 Gen 1 20S0, 20S1, 20S2, 20S3 ¦ Lenovo ThinkPad T14s Gen 1 20T0, 20T1 ¦ Lenovo ThinkPad T15 Gen 1 20S7 ¦ Lenovo ThinkPad T25 20K7 ¦ Lenovo ThinkPad T470 20HD, 20HE, 20JM, 20JN ¦ Lenovo ThinkPad T470s 20HF, 20HG, 20JS, 20JT ¦ Lenovo ThinkPad T480 20L5, 20L6 ¦ Lenovo ThinkPad T480s 20L7, 20L8 ¦ Lenovo ThinkPad T570 20H9, 20HA, 20JW, 20JX ¦ Lenovo ThinkPad T580 20L9, 20LA ¦ Lenovo ThinkPad X1 Carbon (6th Gen) 20KG, 20KH ¦ Lenovo ThinkPad X1 Carbon (7th Gen) ¦ Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC ¦ Lenovo ThinkPad X1 Carbon Gen 8 20UA ¦ Lenovo ThinkPad X1 Tablet (3rd Gen) 20KJ, 20KK ¦ Lenovo ThinkPad X1 Yoga (2nd Gen) 20JD, 20JE, 20JF, 20JG ¦ Lenovo ThinkPad X1 Yoga (3rd Gen) 20LD, 20LE, 20LF, 20LG ¦ Lenovo ThinkPad X1 Yoga (4th Gen) ¦ Lenovo ThinkPad X1 Yoga Gen 5 20UC ¦ Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE ¦ Lenovo ThinkPad X13 Gen 1 20T3 ¦ Lenovo ThinkPad X280 20KE, 20KF ¦ Lenovo ThinkPad X380 Yoga 20LH, 20LJ ¦ Lenovo ThinkPad Yoga 370 20JH, 20JJ ¦ Lenovo ThinkSmart Hub 700 20N0 |
